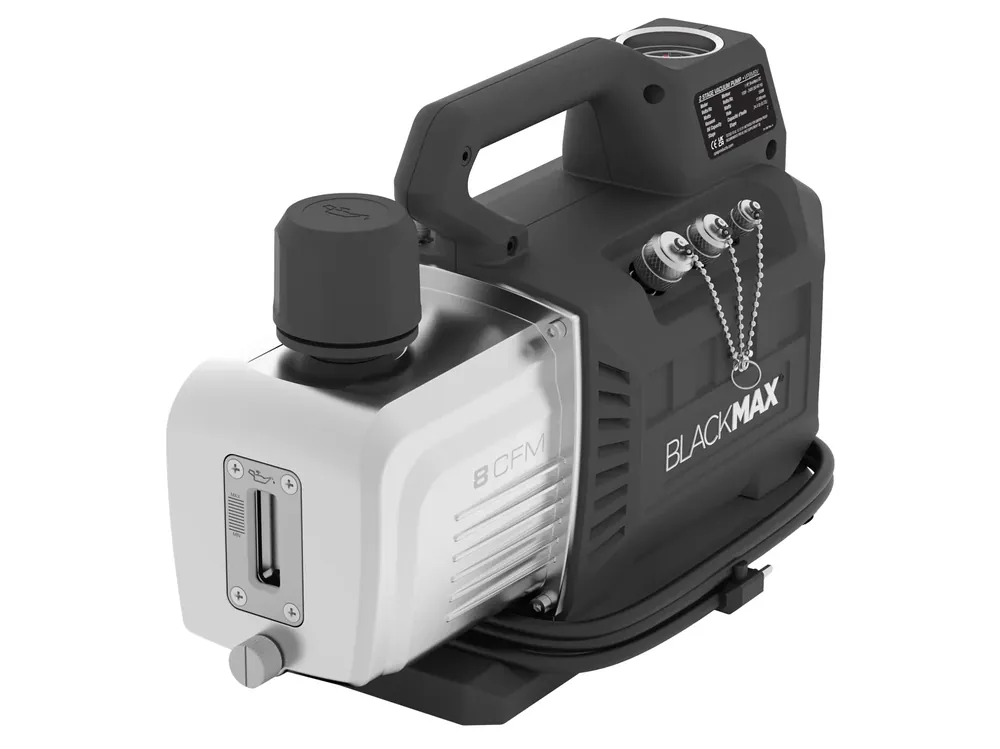

CPS Products VPBM8V BlackMax® 8 CFM Vacuum Pump

KEY FEATURES:

• Lightweight (22.4 Lbs / 10.1 Kg)
• Compact, portable size (0.57 cu. ft.)
• 1 HP, variable speed, brushless DC motor
• 100 to 240VAC (50/60Hz) universal voltage
• In-line 1/2″, 3/8″,1/4″ hose connection ports
• Stores/operates in extreme temperatures
• Auto shut-off solenoid valve
• Analog vacuum gauge
• Large vertical oil sight glass
• Closed, hoist-type handle
• 15 Micron ultimate vacuum
• Quiet Operation

SPECIFICATIONS:

Maximum Free Air Displacement:8 CFM

Stage:2

Ultimate Vacuum:15 Microns

Refrigerant Class:Compatible With Residual A1, A2L, A2, A3 Refrigerants (Not A Recovery Machine)

Voltage:Universal Voltage: 100V min- 240V max, 50/60Hz

Maximum RPM:3200

Motor Size (HP):1 HP

Watts:500

Ignition Proof On/Off Switch:Flashing Green: Standby; Solid Green: Pump Is Running

Power Cord:Locking 90° IEC Type, 10 Ft (3m) Length

Vacuum Pump Oil Capacity (Max):24.4 Oz (0.72 L)

Exhaust/Oil Fill Cap:Mist Free

Analog Vacuum Gauge:Units: kPa, InHg (Accuracy +/-2%)

Gas Ballast Valve:Drys Out The 2nd Stage. Plated Brass

Solenoid Valve:Normally Closed. Open When Vacuum Pump Is Energized

Operating Temperature Range:5°F to 130°F (-15°C to 55°C)

Thermal Overload Protection:Yes

Pump Weight (W/o Pkg):22.4 Lbs (10.1 Kg)

Actual Size (mm):10.5″ H x 6.06″ W x 15.5″ L (267 x 164 x 394mm)

Approvals:CE and UKCA (Tested to UL 12.12.01 Methods For Ignition Proof Requirements Per UL1963 Supplement SB)
EMC (Electro-Magnetic Compatibility):
EN IEC 55014-1:2021; EN IEC 55014-2:2021;
EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021
