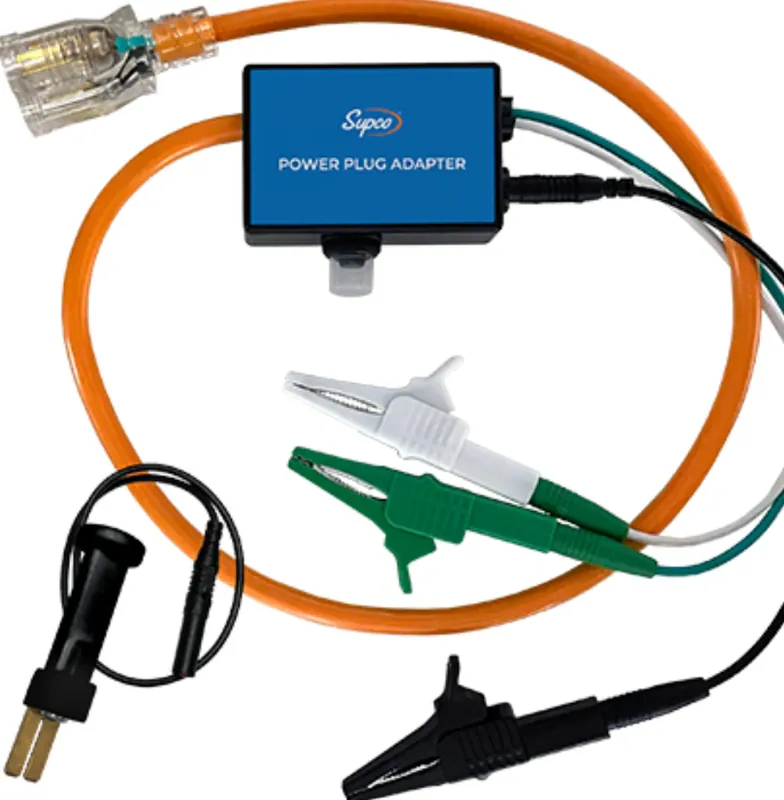

Supco PPA15 Disconnect Power Plug

The PPA15 Power Plug is designed to quickly give a technician access to 120V from a 220/240V 1PH disconnect box. You will no longer need to search for an outlet, or run a long extension cord for your vacuum pump or other 120V electrical tools.

15 Amp Resettable Overload
Magnetic Power Plug Box Attaches to Side of Disconnect Box
Quick and Easy Setup
Comes with Pouch to hold the PPA15 and Accessories
See Download Tab for Setup Instructions

Specifications

Ground Wire:	13-3/4″ Long, 16 AWG, Green
Ground Wire Connector:	Safety Crocodile Clip, 1KV, 32A, Green
Output Cable:	27″ Long, 16 AWG 3C, Yellow
Output Cable Receptacle:	Female (5-15R) 125VAC
Input Wires 1 & 2:	8″ Long, 16 AWG, Black
Input Wire 1 Connector:	Safety Crocodile Clip, 1KV, 32A, Black
Input Wire 2 Connector:	Male Blade
